CyBroWebScada


PROFESSIONAL WEB SUPERVISORY & MONITORING SYSTEM


CyBroWebScada is web software which provides monitoring and changing CyBro-2 variables in real time, logging variables in database and remote programming.

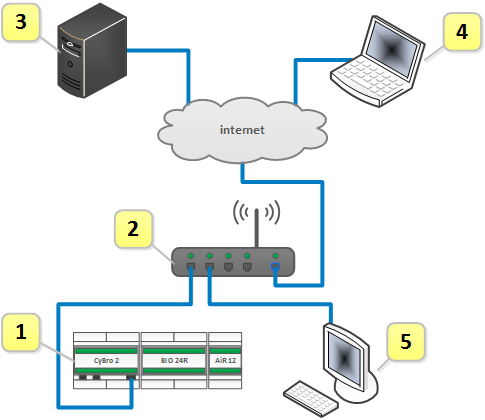

CyBroWebScada

  1. CyBro-2 controller with expansion modules
  2. Home network router
  3. CyBroWebScada server
  4. Remote WEB browser
  5. Local WEB browser

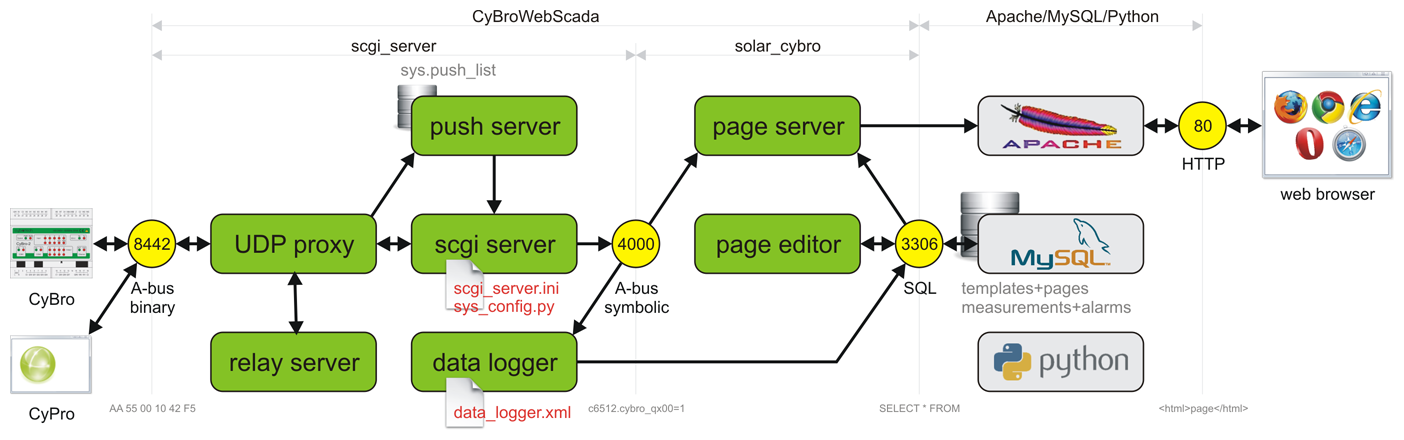

Server structure


CyBroWebScada server structure

Features

  • On-line data display and write
  • Data logging to MySql database
  • Displaying logged data in time-plots
  • Alarms and Events:
    • Simple definition on server
    • Logged in database
    • E-mail notifications
  • Communication initialized from CyBro (no need to reconfigure local router)
  • Relay server allows remote access for upgrades and programming

Hardware requirements

CyBroWebScada can be installed on one of following platforms:

  • Raspbery Pi for small projects (up to 5 CyBro-2 controllers).
  • Desktop PC server for larger projects (practically unlimited CyBro-2 controllers).
  • Hosting service which includes: server, preinstalled web scada and system maintenance (OS, Apache, MySQL, Django, Web Scada). Scada application (design, create, maintenance, backup) not included.
